We have new finished a fllor decking machine for a mexcio customer, it is a new designed floor decking profiles, with the embossing designing.
Thickness is from 0.8-1.2mm. Effective is 915mm.

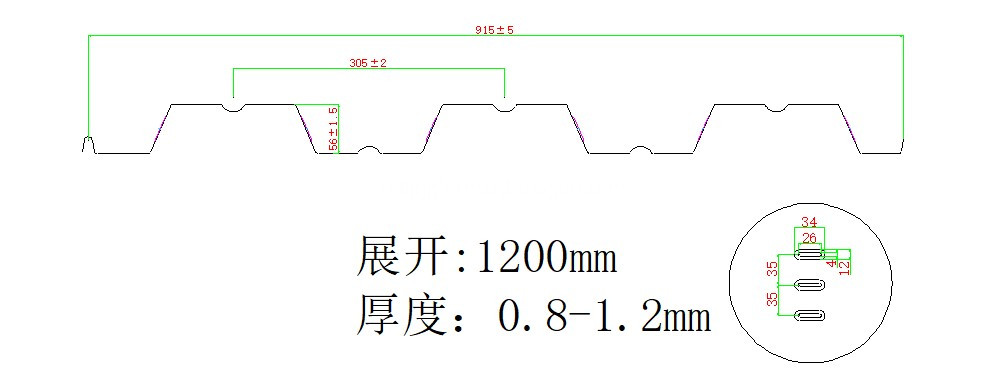

below is the drawing for your reference:
Specifications of this new finished flooe decking rollforming line is as below:
Equipment type Yx56x305x915mm
Expanded width 1200mm
Working speed 10-15 m / min (including cutting time)
Pressed sheet thickness 0,8-1,2mm
Control method Panasonic PLC
5 tons manual discharge rack
Number of molding channels 28 channels [including management]
Roll material 45# steel finish, chrome plating on the surface
Shaft material and shaft diameter 45# steel finishing, shaft diameter ¢85mm
Host power 22kw
Hydraulic station power 5,5w
Hydraulic pressure 12Mpa
Scissors material Cr12Mov, quenched HRC 58-62°C
Length tolerance 3m±1.0mm
Voltage 380V, 50HZ, 3 phase
(Adjustable according to customer requirements)
Transmission mode 1,0 inch double row chain drive
Equipment form Wall structure
Equipment color company color
Equipment size length * width * height 14,5, m x 1.8 m *1..0 m

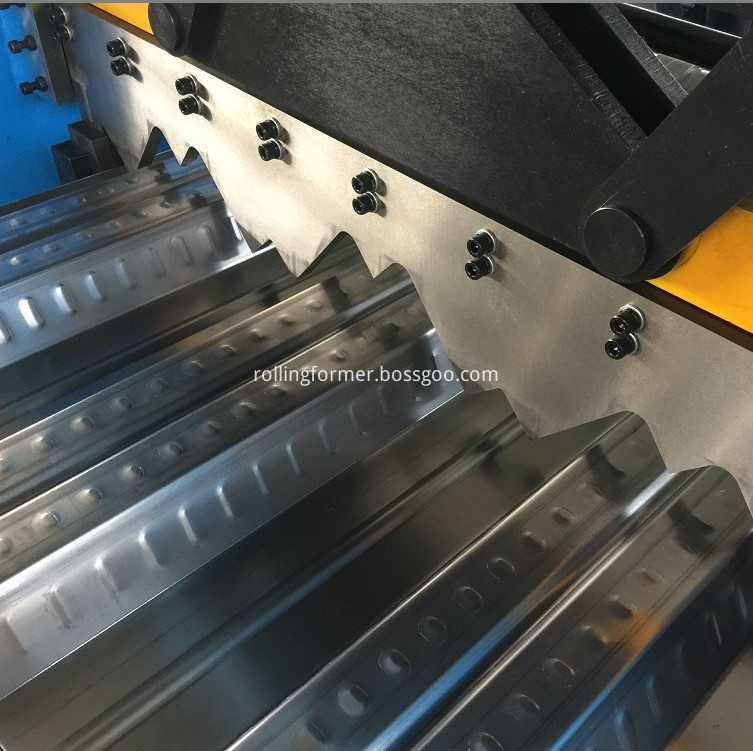

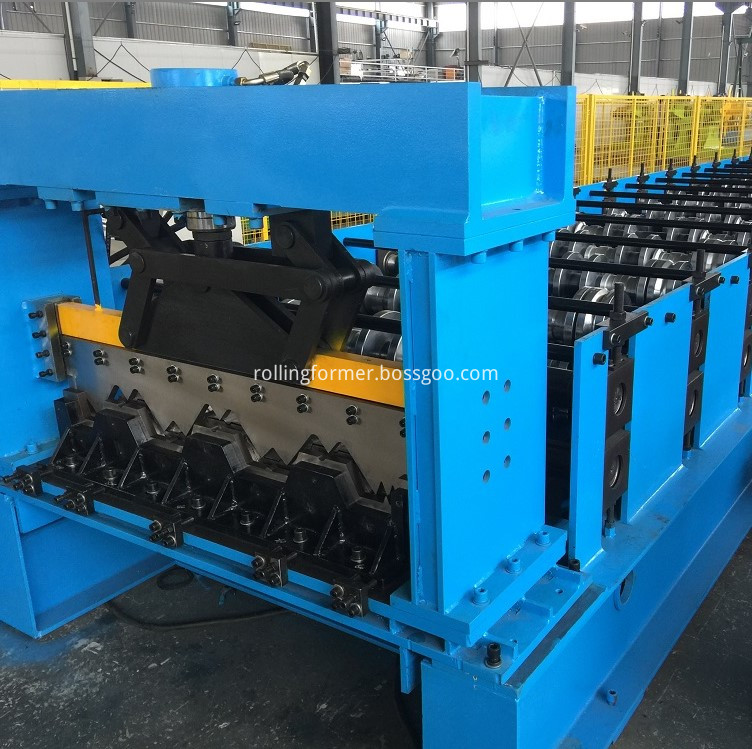

Below are some pictures of the floor decking machine for your reference:
